Samsung SU3350 - Stripdown and Refurb

[beko1987]

• Tweet

I took this in part exchange for something a while ago, took £5 off which they were happy with.





I was quite happy with this, until 2 days later I saw some broken ness



Buggar



The middle wheel holder was broken too



I put it in the shed, ready for the next tip run, however 2 weeks later, we did a car boot, and I chucked it in the car in the hope I got my fiver back. It didnt sell..

However, when everyone was packing up, I had a wander round again, and with a one in a million change spotted an identical black one!



for 50p, as the seller said he didnt think it worked! Score I thought

So, lets have a better look at this horrible plastivac





The red one had a broken bin flap



A cracked hose end



Knackered cable



The black one was more battered body wise than the red one



The black one was an SU3364



with an in tact bin flap!



and a better cable.



black one is missing a cord hook but has the dusting/upholstry tool which the red one didnt



So, lets start the stripdown, and save a machine that doesnt really deserve to be saved!



I'd put the filters and hose through the wash in a previous load, so they didnt need touching

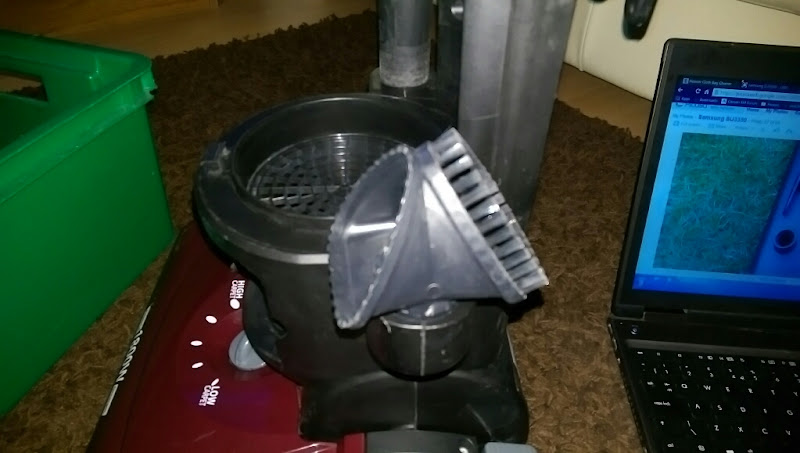

The post filter sits behind a cover









Crevice tool and extension wand come out



missing tool procured from the black one



Was a bit peaky





Hose off and to one side





The hose from the black machine is undamaged so I pinched that



Identical, but different shades



The top handle came off easily as the screws were already loose



top cord hook comes out





Onto the base now



baseplate comes off eventually, being stuck on with crap





Brushroll wasnt too bad





However, the end caps didnt twist off, or prise off very well



Came off easily with some help though







The other end had the bearing in a removeable holder rather than being fitted straight into the brushroll



Some gentle tapping from behind with the axle and a hammer got them out



The other end has the bearing straight in the brushroll end



The bearing taps out of the white holder





Belt was good, despite it being sat for a while and distorting





Two plastic blocks either side hold the chassis to the brushroll housing







The internal hose is held in by this plastic block



once released they can be fully split



The middle wheel snaps out



Ah yes, the break...



back with the black one, and a quick fiddle later...

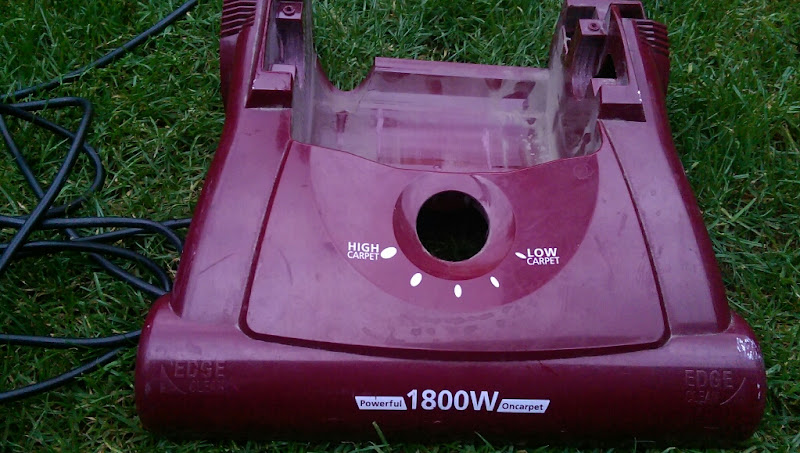

The height adjuster rotates to a keyed point then falls out without the middle wheel assembly holding it in



Release pedal snaps out of the lower chassis



lower chassis is empty



Back onto the main machine now, and the internal hose prises off the little holder bit eventually



Some screws later and the motor housing comes apart

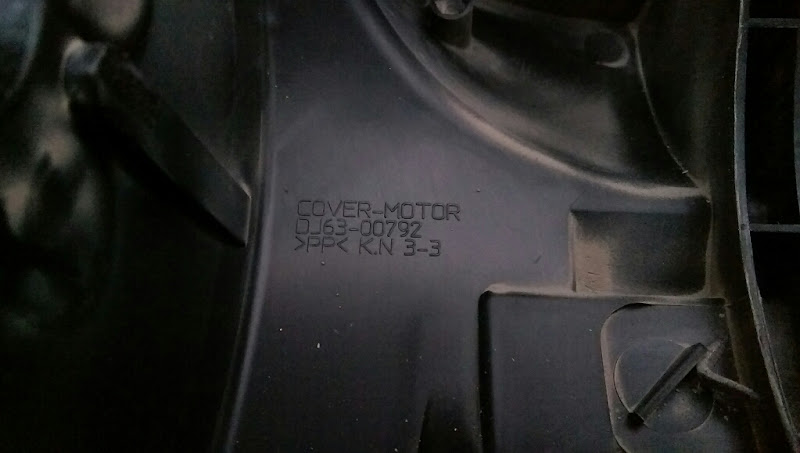

I noticed at this point that all the parts were labelled



The motor was clean, which was nice







armature is clean too



The main chassis splits in half



The cyclone-hose seal comes out of the chassis



The lower cord hook is removeable now

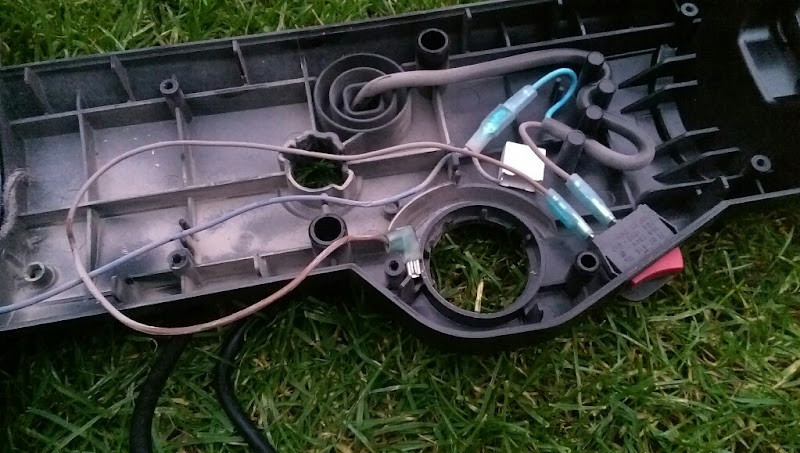

Wiring next





The light was fading by this point, so the pictures display a marked reduction in quality, apologies for that!

Switch pops out from behind



Hose holder/joiner bit is held in by a screw



Onto the cyclone now





I stripped both down together, as I needed parts from both. One broken and one not broken bottom flap



Seals removed from the good bottom flap



The 'cyclone' is held together with 3 screws





The end was in sight, the sun was nearly gone, but I noticed that the two bottom flaps were VERY different...

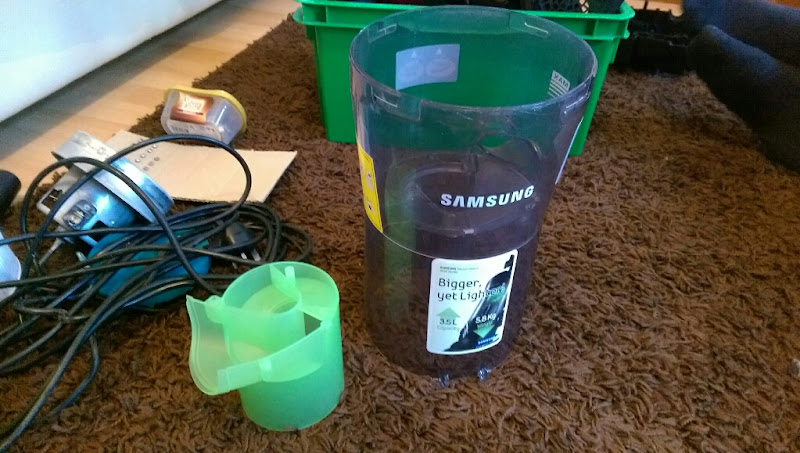

Turns out, the whole cyclone bin and flap were different, very different. So I quickly stripped down the cyclone from the black one to use, and found...



an orange sock! Must be why the seller thought it was broken (the motor ran very nicely indeed)

All was washed and polished, and put back together

Starting with the cyclone



Seals in





top cone screwed back in



and everything else just clips back together!



Hose doo-dah back in



Switch in



Wired back up with the good cable from the black one



Lower cord hook back in



Got a bit carried away and refitted the motor, and put the 2 halves of the chassis together



Hose in



height knob and release button refitted to the hood



and the hose hooked up underneath



middle wheel re-assembled





Brushroll back together



and fitted



Baseplate fitted





Rear wheels refitted





Handle screwed back on properly



Hose fitted



Tools fitted





Filters fitted

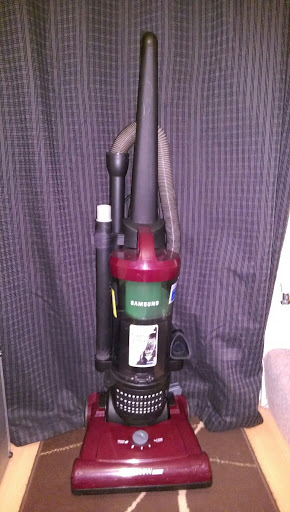

and she is done!









I've put it up on a few facebook sites, and will take it to the car boot on sunday if I still have it. I kept the good motor from the black one and tipped the rest to get some space back.
