Dyson DC24 Stripdown and Refurb
« on: November 05, 2013, 07:01:31 PM »
Hope you don't mind me putting another of my projects up?

The patient:



A DC24 All Floors with grumbly carbons. Runs well enough, but smells of burning on occasion and sparks can be seen with the filter removed. I've been using this for the past few weeks, but decided to strip it down so it can be sold and be out of the way!



Hose and handle off



Switch housing removed. Found a good cheat here is to leave the screws in a few turns and push them in, this the unclips the housing without resorting to screwdrivers!



Much the same setup as the DC25 internally









Getting there



Moody* shot

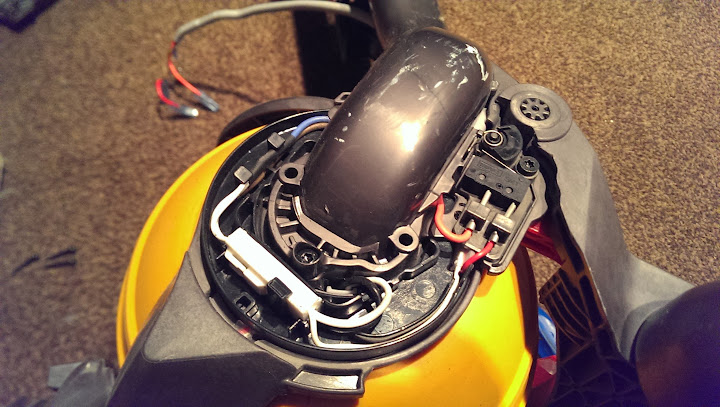

Remove the cover, and the wires and centre screw become visible



Refrence of the orange and red wire that goes into the recline activated brushroll switch



Pop the lower hose off



Remove the centre screw from both sides





And unclip the ball. Be careful though, the wires are all still attached.

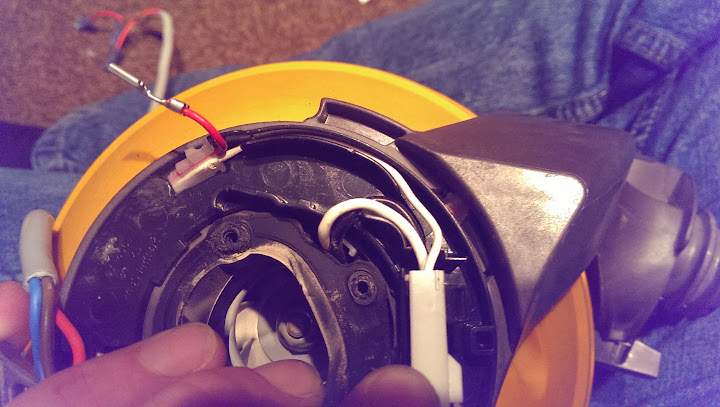

Refrence shots of the cable runs, it all has to go back together exactly otherwise the ball won't turn/it will but you will rip loads of wires out...











Under the black ring, the wires from the floorhead coil around the housing





Once all the wires are unplugged and removed from their various holding positions, you can fully seperate the ball from the yolk assembly



Sidelining to the yolk assembly, undo the 1 torx screw and the cable cover will lift off and wriggle out



In order to properly wash the yolk, the floorhead plug needs to be stripped and removed. The wires need to be removed for this, they just pull out. Tip here is to loop some cable out of the back, then push the contacts out with this slack, then pull them through and out of the housing. (It's easier when you do it)



The yolk can then be fully removed



Remove the rubber seal from the motor housing



4 torx screws later the ball falls apart

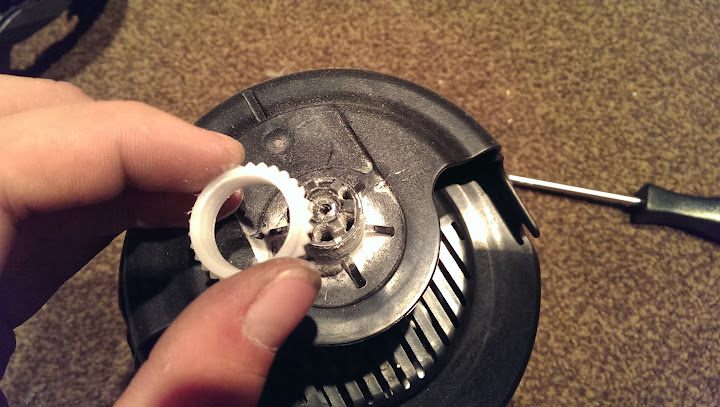

Nylon 'washer' is slightly worn, but should be ok with a drop of grease for many more years



The motor and motor housing



The motor cables are fed out and around the motor housing



The black rubber bung is fixed, but does wriggle out of the motor rubbers



The wiring connectors wedge into the space on the motor rubbers







Now we can get to the root of the issue







The carbon has started to break down and spark. Luckily the armature is in good condition though, it's not been doing this long. 1 screw in each carbon housing and the whole thing unclips.

I then found the carbons from my scrap DC24 (Motor broke and it didnt run very well)



However, old motor was a Panasonic, good motor is a YDK



So, a few emails to MVacs later and they have some in stock at a VERY good price, so once I have some spare money I will be buying some better condition ones.

Carried on with the stripdown so it could all be washed







Rubbers off





Pedal and wheels next. Spring for refrence



2 screws and some wriggling later and





This plastic shroud slides off now



Not sure what this bit does, but here it is!



Moving onto the valve assembly, the clear plastic disk comes off first. Smaller torx screw here



Another screw through the centre of the spring, and a quick push with a screwdriver to poke it out and the valve flap will fall off.

Undo 4 more screws and the valve assembly will remove fully from the main chassis



Valve flap spring refrence shot

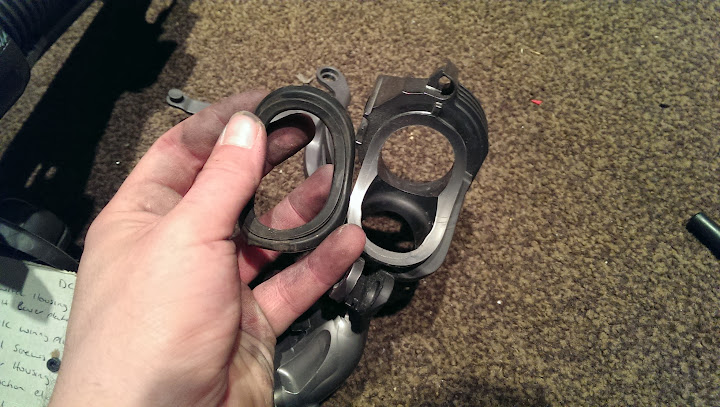

Rubbers out of valve flap



The last thing to remove is the valve hose. Flicks out with a screwdriver, and once you un-latch the top mount it pops out with a slight turn



Split for cleaning



Now you have a naked chassis in your hands

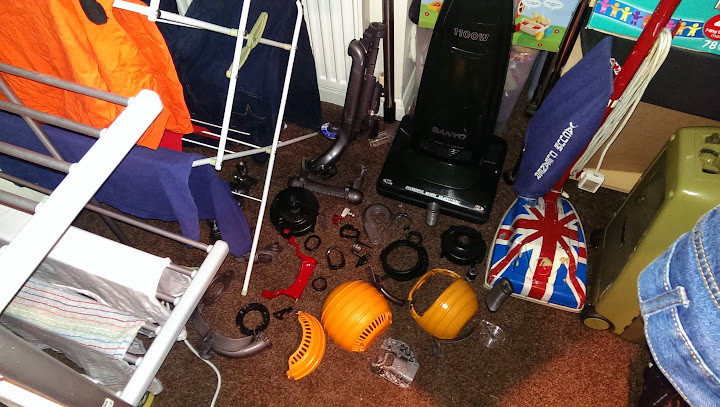

and a big pile of washing



A smaller pile of non washable bits

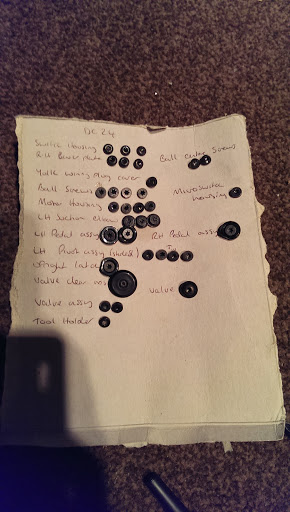

and all the screws so far



Al the plastics were washed and left out to dry for a night. It is now all sitting in a box awaiting the new carbon brushes, although I may start putting it together just so nothing gets lost, and stop when I can go no further



Still to come: Re-assembly, new carbons, cyclone stripdown and floorhead stripdown. Hope the new carbons fix it after all this!
