How To - DC15 Carriage Release Springs
« on: June 10, 2015, 10:59:56 PM »
I had a DC15 in for a refurb and repair the other week. The changeover valve had snapped, requiring manual activation of the changeover unit, far from ideal!



Luckily, it is an easy fix.

To start, strip the machine down to the state below

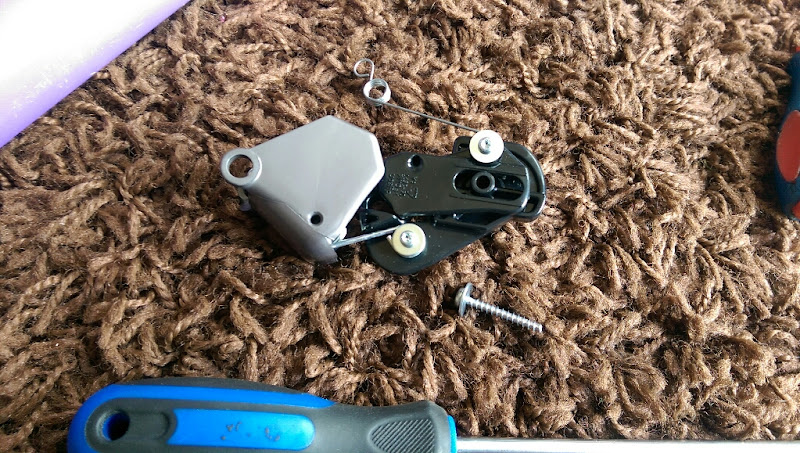

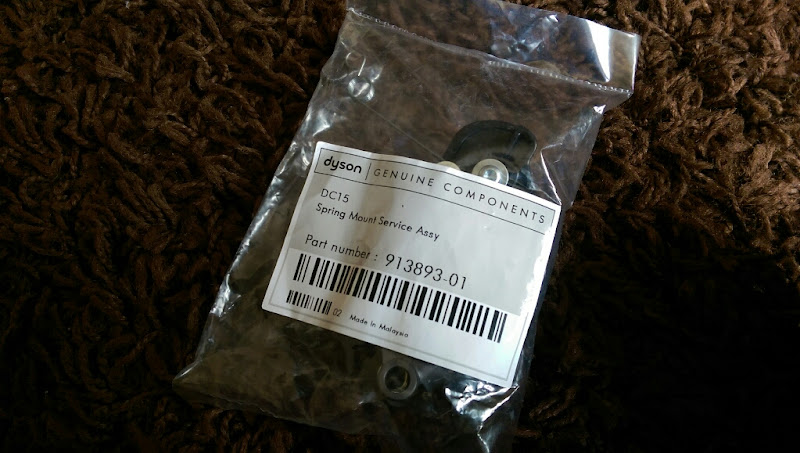

The assembly comes as below



The parts feel alot stronger than the originals



To replace it, you need to remove the lower hose



Then undo the screw in the yolk spigot



and remove the yolk spigot



Remove the static cover next





The owner needed it back before the parts came as he was moving house, so I refitted the bit that needed to be there, and he carried on manually reclining the machine. Before, this was a mess of springs. Basically, strip it all out as below...



Recline the machine and lay it on its side. Remove the broken bit. The wheel assembly will go floppy once you remove it



Take the new spring mount assembly and insert it into the hole (it only goes in one way)



Fit the long spring to the locating stub


https://manchestervacs.co.uk/DysonForum/Themes/default/images/bbc/img.gif
Fit one half of the spring attached to the moving cover to the assembly



Fit the other half of the spring to the machine

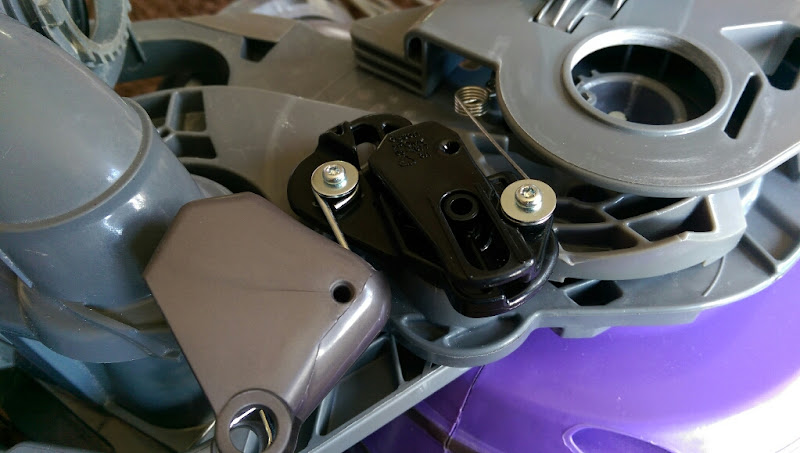

Fit both sides of the moving cover to the spring/cover mounts



Fit the covers, as the screw that goes through it prevents the big spring from coming off and ensures the movement is kept smooth.



Test and marvel at the now working reclining mechanism!
Collector and restorer of vintage vacuums, Dyson Appreciator! Come and see my blog, where I am uploading all my mountains of brochures, manuals and other vacuum cleaner paperwork, and also my youtube channel @beko1987!

Online Parwaz7862

  • Member
  • Posts: 3141
  • Country: gb
  • Gender: Male
  • Dyson geek 😃
Re: How To - DC15 Carriage Release Springs
« Reply #1 on: June 11, 2015, 01:24:11 AM »
Thanks for producing such a helpful and detailed guide ;Dlooks really good (the job you did there and on the machine too) almost looks like you are working on an unboxed DC15!
PS I had a DC14 allergy once which had the same problem, needed the changeover valve moving manually when the cleaner head is kicked down
DC14s are tanks, just need a slightly longer motor life. Do plastic parts often break on DC14s? Nope. DC41- Sexy looking futuristic and powerful machine. Just needs a better designed cleaner head wheel and cyclone clip along with a dense metal rod in the chassis.

Offline beko1987

  • Member
  • Posts: 3637
  • Country: gb
  • Gender: Male
  • Let's take it apart!
    • My blog
Re: How To - DC15 Carriage Release Springs
« Reply #2 on: June 11, 2015, 01:26:39 PM »
Hehe cheers. The job was done post refurb (I cleaned out the cyclone again before returning it) so it was nicer to work on than the before state!
Collector and restorer of vintage vacuums, Dyson Appreciator! Come and see my blog, where I am uploading all my mountains of brochures, manuals and other vacuum cleaner paperwork, and also my youtube channel @beko1987!

Online Parwaz7862

  • Member
  • Posts: 3141
  • Country: gb
  • Gender: Male
  • Dyson geek 😃
Re: How To - DC15 Carriage Release Springs
« Reply #3 on: June 11, 2015, 01:41:44 PM »
Cool ;D good job :) I like the way you refurbish vacs, every single part taken apart ;D I wouldn't have done more than wash the tubes, cleaner head parts, hose wand and cyclone if it wasnt for the burnt out motor lol
DC14s are tanks, just need a slightly longer motor life. Do plastic parts often break on DC14s? Nope. DC41- Sexy looking futuristic and powerful machine. Just needs a better designed cleaner head wheel and cyclone clip along with a dense metal rod in the chassis.

Offline beko1987

  • Member
  • Posts: 3637
  • Country: gb
  • Gender: Male
  • Let's take it apart!
    • My blog
Re: How To - DC15 Carriage Release Springs
« Reply #4 on: June 11, 2015, 01:46:51 PM »
By the time youve sat there poking a baby wipe into all the accesible areas though you could have it apart, washed, polished, seals cleaned and back together with much better results!
Collector and restorer of vintage vacuums, Dyson Appreciator! Come and see my blog, where I am uploading all my mountains of brochures, manuals and other vacuum cleaner paperwork, and also my youtube channel @beko1987!

Online Parwaz7862

  • Member
  • Posts: 3141
  • Country: gb
  • Gender: Male
  • Dyson geek 😃
Re: How To - DC15 Carriage Release Springs
« Reply #5 on: June 11, 2015, 03:04:45 PM »
;D when I get the DC24 Animal (hopefully) I will refurb it with lots of care, comes with the mini turbine bead too!  :king:
DC14s are tanks, just need a slightly longer motor life. Do plastic parts often break on DC14s? Nope. DC41- Sexy looking futuristic and powerful machine. Just needs a better designed cleaner head wheel and cyclone clip along with a dense metal rod in the chassis.

Offline Tech12

  • Member
  • Posts: 744
  • Country: gb
  • Gender: Male
  • Electrical Appliance Engineer / Trainer.
Re: How To - DC15 Carriage Release Springs
« Reply #6 on: June 12, 2015, 09:41:49 AM »
Nice guide as always Beko  :thumbsup:


Repairs to All makes of Small Commercial & Domestic appliance. Power tool repair.
City & Guilds and PAT qualified engineer.

Offline autovac01

  • Member
  • Posts: 219
  • Country: gb
  • Woman in a man's world.
    • Autovac Worcester
Re: How To - DC15 Carriage Release Springs
« Reply #7 on: February 03, 2016, 03:58:36 PM »
Job done.  :coffee: even though old part not broken, it sorted the problem.
