Dyson Turbobrush - Stripdown and Refurb
« on: August 15, 2015, 11:43:53 PM »
I've had this in the shed for aaages, and found it the other day.





It didnt work too well, so lets have it apart and see if it can be perked up a bit



The rubber squeegee snaps out from underneath



Front wheels snap out



Undo the 5 screws holding the clear head on and it seperates into 3 sections



Crap shot, but the head wasnt too bad

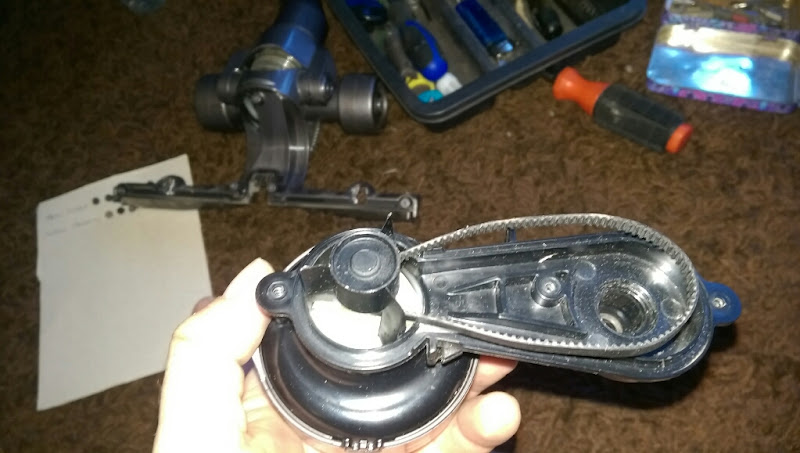

This is the main turbine assembly



Brushroll twists off the axle holders



The non moveable side snaps off



The two bits that hold the brushroll on need to come off. A bearing puller is pretty essential tbh for this bit





The turbine assembly then comes apart this much



The axles are held in place with a spring clip on either side



The best way I found is to hold the plastic casing firmly, and tap the axle with a hammer until the spring clip gives



Using the puller again, slide the brass bearing bush off the axle



The spring and spring clip fall off now



The half of the turbine casing you tapped the axle out of first comes off now



More tappy tappy and the other spring clip releases its grip on the turbine casing



You should now be left with just the turbine casing



The brushroll on/off mechanism pops off the other side



the red part pops out of the silver part



The top of the turbine housing levers up and out, releasing the inner turbine and belt





On to the main housing parts now



 The ends lever out and pop off, splitting the unit and releasing the hose



Some rubber bits come off



Little seal here





And it's as apart as it will get!



It was all washed and polished, then time to go back together.

Main seal back in. This is quite important to get it seated properly as its the main suction inlet to the whole thing





Rubbery bits back in



Main housing bits clipped together



Clip all the turbine bits back together with a drop of oil on all the moving parts



Slip the brass bushes and springs on the axles



and fit the airflow button



Brushrolls fitted

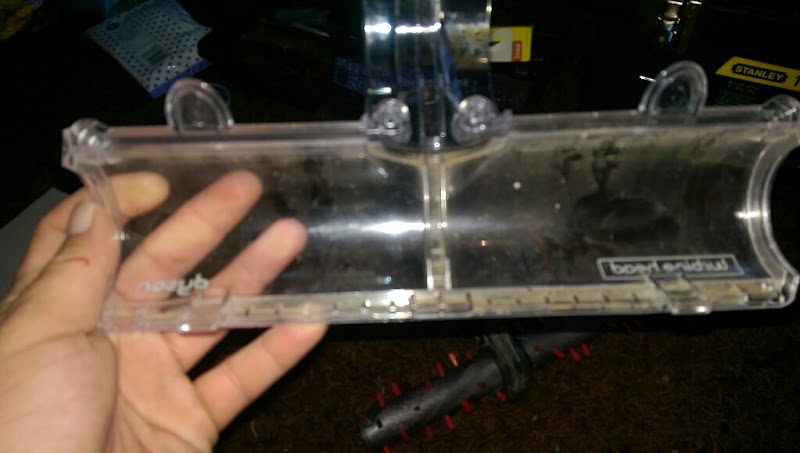

Take your freshly polished clear housing



and screw all 3 parts back together



Voila!





All done. Works MUCH better now, I attached it to my Hoover Galaxy which spun it up on the lowest setting right up to the highest.
